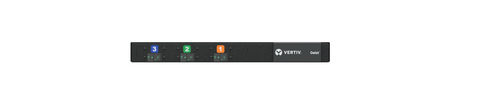

U1076 - unité de distribution d'énergie 12 sortie(s) CA 1U Noir
Ref : U1076726,87 €
HTVA
Vertiv Geist Rack PDU elementary 1U UPDU rating 3ph 16A 230/415V combi outputs (12)C13 or C19
Points Clés
- High retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord.
- High Temperature Grade 60°C for high temperature environments.
- Simplify cable management with the Combination Outlet C13 / C19 by simply connecting equipment to the closest available receptacle.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- The Combination Outlet C13 / C19 is a 2-in-1 receptacle functioning as both an IEC C13 and C19. Simplify the rack PDU buying process and accommodate ever-changing rack power requirements.
- The Combination Outlet C13 / C19 meets global electrical compliance requirements and is UL Certified and CE Marked.
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC).
Points Clés
- High retention outlets reduce the risk of costly downtime from accidental disconnections of the power cord.
- High Temperature Grade 60°C for high temperature environments.
- Simplify cable management with the Combination Outlet C13 / C19 by simply connecting equipment to the closest available receptacle.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- The Combination Outlet C13 / C19 is a 2-in-1 receptacle functioning as both an IEC C13 and C19. Simplify the rack PDU buying process and accommodate ever-changing rack power requirements.
- The Combination Outlet C13 / C19 meets global electrical compliance requirements and is UL Certified and CE Marked.
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC).
- High Temperature Grade 60°C for high temperature environments.
- Simplify cable management with the Combination Outlet C13 / C19 by simply connecting equipment to the closest available receptacle.
- Standard three-year warranty, upgraded to a five-year warranty with product registration.
- The Combination Outlet C13 / C19 is a 2-in-1 receptacle functioning as both an IEC C13 and C19. Simplify the rack PDU buying process and accommodate ever-changing rack power requirements.
- The Combination Outlet C13 / C19 meets global electrical compliance requirements and is UL Certified and CE Marked.
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing.
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC).
unité de distribution d'énergie 12 sortie(s) CA 1U Noir
U1076Vertiv U1076. Types de PDU: Basique, Capacité du rack: 1U, Montage: horizontale. Nombre de prises en sortie: 12 sortie(s) CA. Certification: - CE Marked - RoHS Compliant. Tension nominale à l'entrée: 230/400 V, Intensité (max.): 16 A, Fréquence d'entrée AC: 50 Hz. Largeur: 432 mm, Profondeur: 44 mm, Hauteur: 229 mm
| Design | |
| Types de PDU | Basique |
| Capacité du rack | 1U |
| Montage | horizontale |
| Couleur du produit | Noir |
| Connectivité | |
| Nombre de prises en sortie | 12 sortie(s) CA |
| Caractéristiques | |
| Certification | - CE Marked - RoHS Compliant |
| Puissance | |
| Tension nominale à l'entrée | 230/400 V |
| Intensité (max.) | 16 A |
| Fréquence d'entrée AC | 50 Hz |
| Capacité d'alimentation/charge | 11000 VA |
| Poids et dimensions | |
| Largeur | 432 mm |
| Profondeur | 44 mm |
| Hauteur | 229 mm |
| Poids | 7,26 kg |
| Conditions environnementales | |
| Température d'opération | 0 - 60 °C |
| Taux d'humidité de fonctionnement | 5 - 95% |
| Taux d'humidité relative (stockage) | 5 - 95% |
| Altitude de fonctionnement | 0 - 3050 m |
| Détails techniques | |
| Certificats de durabilité | RoHS |
