Depuis 1985 au Grand Duché de Luxembourg

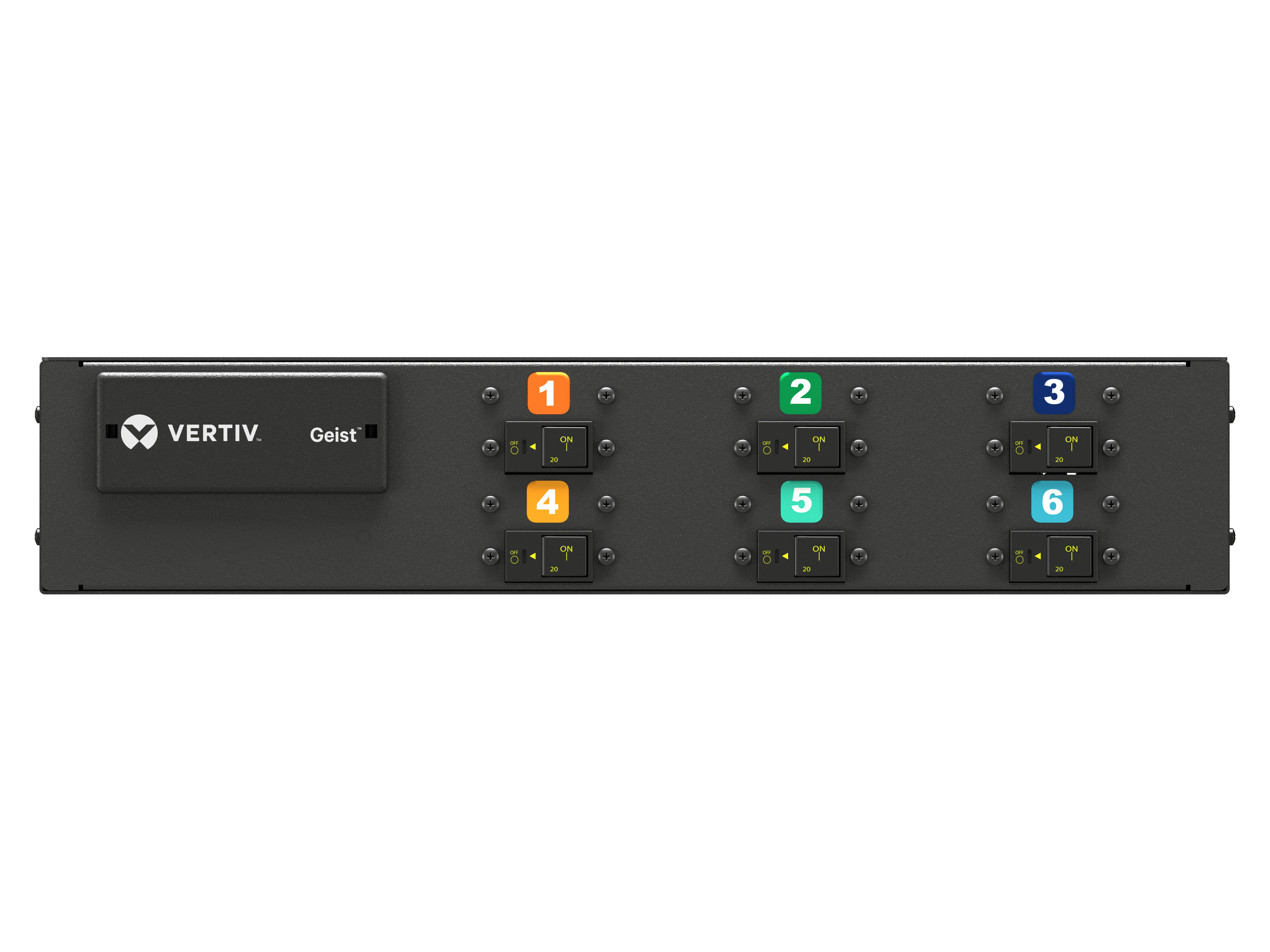

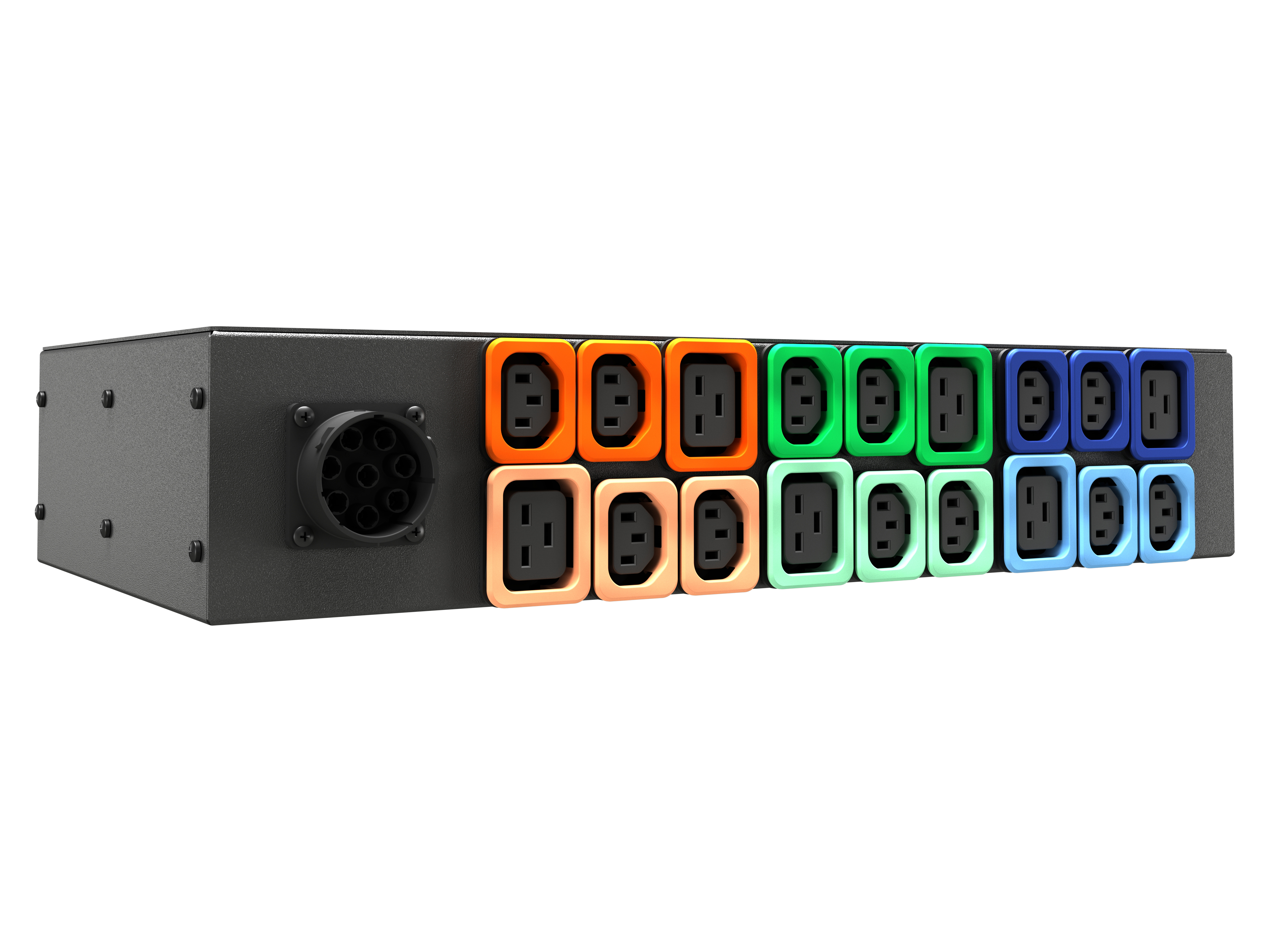

U1071L - unité de distribution d'énergie 18 sortie(s) CA 2U Noir
Ref : U1071L942,36 €
HTVA
Vertiv Geist Rack UPDU elementary 2U UPDU rating 3ph 32A 230/415V locking IEC60320 output (12)C13 (6)C19
Points Clés
- Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only)
- Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
- The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
- Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
Points Clés
- Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only)
- Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
- The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
- Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
- Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
- The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
- The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
- The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
- Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
unité de distribution d'énergie 18 sortie(s) CA 2U Noir
U1071LVertiv U1071L. Types de PDU: Basique, Capacité du rack: 2U, Montage: horizontale. Nombre de prises en sortie: 18 sortie(s) CA, Types de sortie AC: Coupleur C13, Coupleur C19. Certification: CE, UL, CB. Tension nominale à l'entrée: 230/400 V, Intensité (max.): 32 A, Fréquence d'entrée AC: 50 Hz. Largeur: 87 mm, Profondeur: 432 mm, Hauteur: 299 mm
| Design | |
| Types de PDU | Basique |
| Capacité du rack | 2U |
| Montage | horizontale |
| Couleur du produit | Noir |
| Bouton marche/arrêt intégré | Oui |
| Connectivité | |
| Nombre de prises en sortie | 18 sortie(s) CA |
| Types de sortie AC | Coupleur C13, Coupleur C19 |
| Caractéristiques | |
| Voyants | Non |
| Certification | CE, UL, CB |
| Puissance | |
| Tension nominale à l'entrée | 230/400 V |
| Intensité (max.) | 32 A |
| Fréquence d'entrée AC | 50 Hz |
| Capacité d'alimentation/charge | 22000 VA |
| Poids et dimensions | |
| Largeur | 87 mm |
| Profondeur | 432 mm |
| Hauteur | 299 mm |
| Poids | 7,26 kg |
| Conditions environnementales | |
| Température d'opération | 0 - 60 °C |
| Détails techniques | |
| Certificats de durabilité | RoHS |
