PowerScan PM9501 910 MHz Std Range RS-23

PM9501-910RBK20 - PowerScan 9501 Lecteur de code barre portable 1D/2D Linéaire Noir, Jaune

Ref : PM9501-910RBK20
1.139,35 €
HTVA
SKU
PM9501-910RBK20
Marque
Catégorie
Lecteurs de code barres

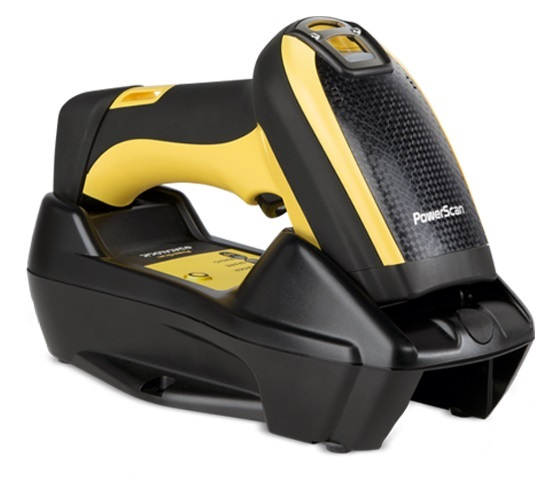

PowerScan PM9501 910 MHz Std Range RS-232 Kit Removable Battery Kit inc. Scanner Base Station BC9030-910 Cable CAB-433 Power Brick 8-0935 and Power Cord 6003-0941.

PowerScan 9501 Lecteur de code barre portable 1D/2D Linéaire Noir, Jaune
PM9501-910RBK20
The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.
The PowerScan PD9531 imager is the corded version of the new series.  The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic’s STAR Cordless System narrow band radio.
The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle.  All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes.  Datalogic’s Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Numérisation
TypeLecteur de code barre portable
Type de scanner1D/2D
Type de capteurLinéaire
Linéaires (1D) codes barres acceptésEAN-13, GS1 DataBar, JAN, Planet, POSTNET, RM4SCC / KIX, UPC-A, UPC-E
Résolution du capteur optique (l x H)864 x 544 pixels
Niveaux de luminosité (rayon direct du soleil)0 - 100000 lux
Angle de lecture: Inclinaison (Tilt)0 - 360°
Angle de lecture Horizontal (Pitch)-40 - 40°
Angle de lecture Vertical (Yaw)-40 - 40°
Connectivité
Technologie de connectivitéAvec fil &sans fil
Interfaces standardsRS-232,RS-485,USB
Version USB2.0
Portée du routeur sans fil270 m
Fréquence de fonctionnement910 MHz
représentation / réalisation
Couleur du produitNoir, Jaune
Matériau du boîtier/corpsPlastique
Code (IP) Internationale ProtectionIP65
Fonctions de protectionRésistant aux chocs
Alarme sonoreOui
Écran integréNon
CertificationR.E.A.C.H.
Puissance
Type de source d'alimentationBatterie, CC
Consommation électrique typique8 W
Technologie batterieLithium-Ion (Li-Ion)
Capacité de la batterie3350 mAh
Nombre de lectures par batterie60000
Durée de vie de la batterie4,5 h
Tension d'entrée10 V
Consommation électrique500 mA
Poids et dimensions
Poids400 g
Largeur110 mm
Profondeur74 mm
Hauteur212 mm
Informations sur l'emballage
Adaptateur d'alimentation externeOui
Câbles inclusSecteur, RS-232
Base de rechargeOui
Conditions environnementales
Température d'opération-20 - 50 °C
Température hors fonctionnement-40 - 70 °C
Taux d'humidité de fonctionnement0 - 95%
Détails techniques
Certificats de durabilitéRoHS
