PowerScan PBT9501 High Performance/Liqui

PBT9501-HPRBK20EU - PowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune

Ref : PBT9501-HPRBK20EU
1.237,11 €
HTVA
SKU
PBT9501-HPRBK20EU
Marque
Catégorie
Lecteurs de code barres

PowerScan PBT9501 High Performance/Liquid Lens RS-232 Kit Removable Battery Kit inc. Scanner Base Station BC9030-BT Cable CAB-433 Power Brick 8-0935 and Power Cord 6003-0940.

PowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune
PBT9501-HPRBK20EU
The PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

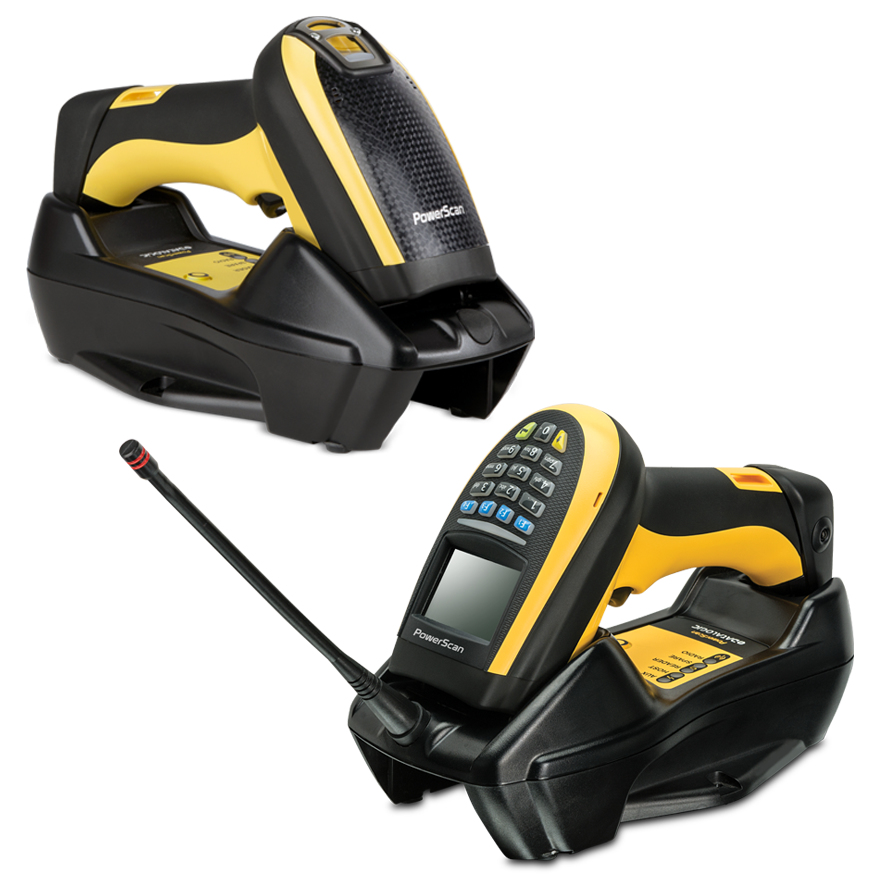

The PowerScan PD9531 imager is the corded version of the new series.  The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic’s STAR Cordless System narrow band radio.

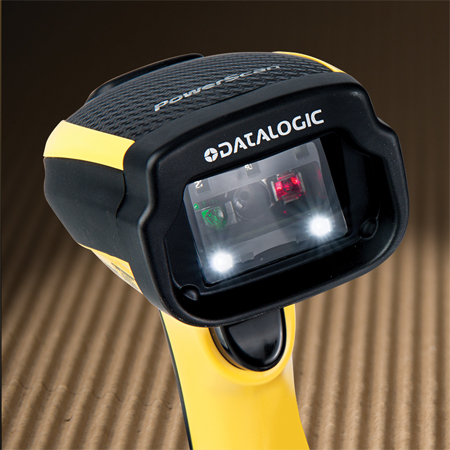

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle.  All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes.  Datalogic’s Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Conditions environnementales
Température d'opération-20 - 50 °C
Température hors fonctionnement-40 - 70 °C
Connectivité
Fréquence de fonctionnement2400 - 2480 MHz
Interfaces standardsBluetooth, RS-232
Modèle du Bluetooth3.0
Technologie de connectivitéAvec fil &sans fil
Détails techniques
Certificats de durabilitéRoHS
Informations sur l'emballage
Base de rechargeOui
Câbles inclusSecteur
Numérisation
Angle de lecture Horizontal (Pitch)-40 - 40°
Angle de lecture Vertical (Yaw)-40 - 40°
Angle de lecture: Inclinaison (Tilt)0 - 360°
Distance de lecture9 cm
Linéaires (1D) codes barres acceptésGS1 DataBar
Matrix (2D) codes barres acceptésAztec Code, Lecture code datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Niveaux de luminosité (rayon direct du soleil)0 - 100000 lux
TypeLecteur de code barre portable
Type de capteurLaser
Type de scanner1D/2D
Poids et dimensions
Hauteur74 mm
Largeur212 mm
Poids380 g
Profondeur110 mm
Puissance
Capacité de la batterie3350 mAh
Consommation électrique500 mA
Consommation électrique typique8 W
Durée de vie de la batterie4,5 h
Nombre de lectures par batterie60000
Technologie batterieLithium-Ion (Li-Ion)
Tension d'entrée10 V
Type de batterieBatterie intégré
Type de source d'alimentationBatterie, CC
représentation / réalisation
Alarme sonoreOui
CertificationR.E.A.C.H.
Code (IP) Internationale ProtectionIP65
Couleur du produitNoir, Jaune
Fonctions de protectionRésistant aux chocs
Matériau du boîtier/corpsPlastique
Nombre de clés4 touche(s)
