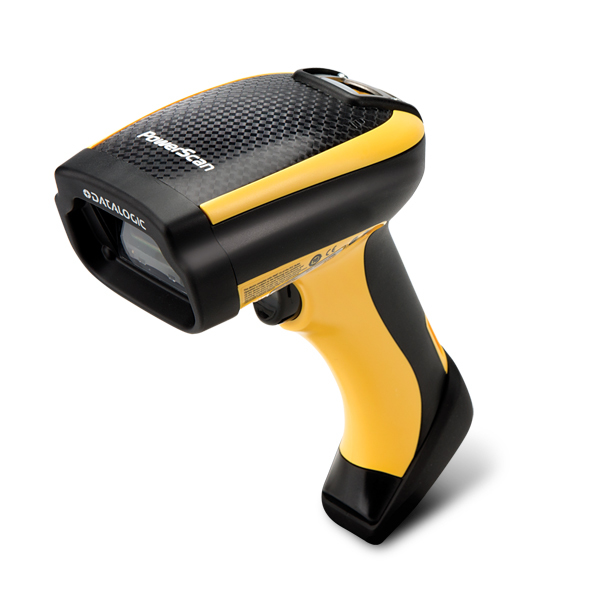

PBT9501-HPRBK10EU - PowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune
Ref : PBT9501-HPRBK10EU1.237,11 €
HTVAPowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune
PBT9501-HPRBK10EUThe PowerScan family of bar code readers are the ultimate industrial hand held scanners designed and constructed to withstand the toughest environmental conditions.

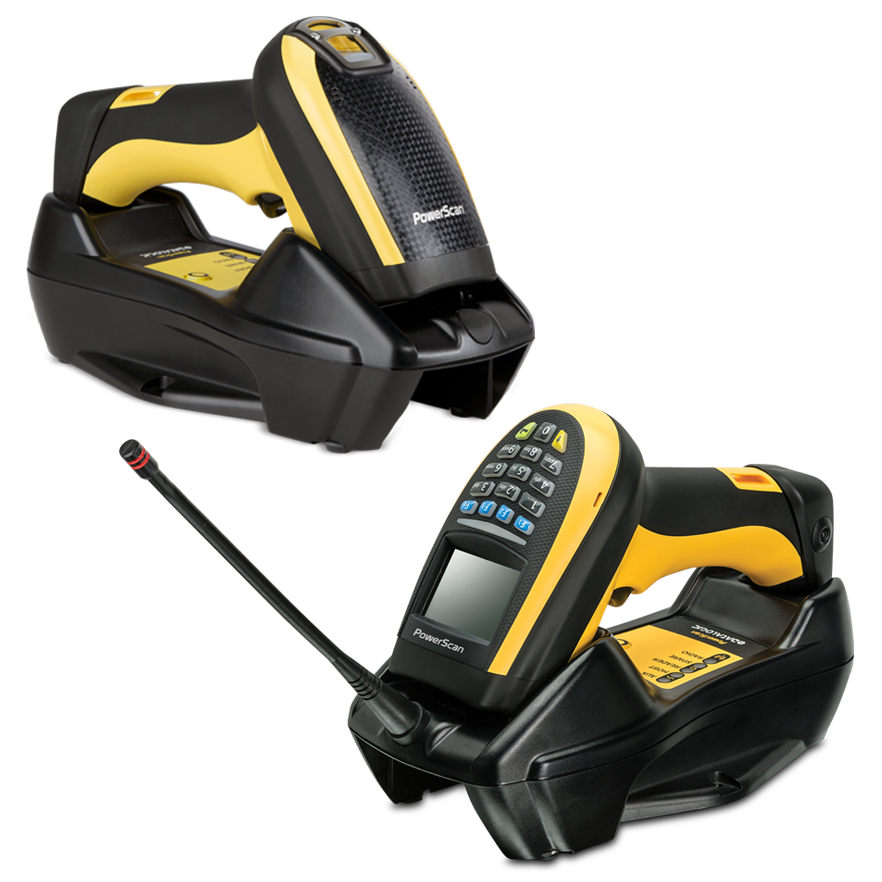

The PowerScan PD9531 imager is the corded version of the new series. The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic’s STAR Cordless System narrow band radio.

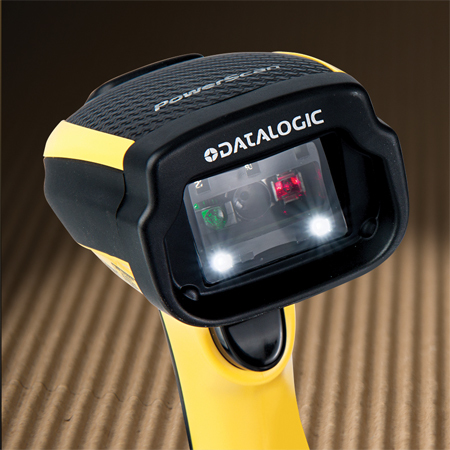

The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
The PowerScan PD9531 imager is the corded version of the new series. The 9501 cordless area imagers are comprised of the PBT9501 / PM9501 imagers. The PBT9501 features Bluetooth wireless technology and the PM9501 features Datalogic’s STAR Cordless System narrow band radio.
The PowerScan 9501 imagers have an ergonomic shape with well-balanced weight and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement. Additionally, the PowerScan 9501 area imagers use a soft-pulsed white illumination light resulting in reduced flashes, which is much gentler on the eyes during scan-intensive operations.
The 9501 area imagers also feature Datalogic’s exclusive 3 Green Lights (3GL) for superior good-read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, Keyboard Wedge, USB and offer an optional Ethernet for standard or industrial uses.
The PowerScan 9501 imagers introduce a new technology with the ‘Liquid Lens’ feature which increases the depth of field and allows the reading of standard, wide and high density bar codes. Datalogic’s Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (hand held or presentation scanning).
Conditions environnementales | |
Température d'opération | -20 - 50 °C |
Température hors fonctionnement | -40 - 70 °C |
Connectivité | |
Fréquence de fonctionnement | 2400 - 2480 MHz |
Interfaces standards | Bluetooth, USB |
Modèle du Bluetooth | 3.0 |
Technologie de connectivité | Avec fil &sans fil |
Version USB | 2.0 |
Détails techniques | |
Certificats de durabilité | RoHS |
Informations sur l'emballage | |
Base de recharge | Oui |
Câbles inclus | Secteur |
Numérisation | |
Angle de lecture Horizontal (Pitch) | -40 - 40° |
Angle de lecture Vertical (Yaw) | -40 - 40° |
Angle de lecture: Inclinaison (Tilt) | 0 - 360° |
Distance de lecture | 9 cm |
Linéaires (1D) codes barres acceptés | GS1 DataBar |
Matrix (2D) codes barres acceptés | Aztec Code, Lecture code datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
Niveaux de luminosité (rayon direct du soleil) | 0 - 100000 lux |
Type | Lecteur de code barre portable |
Type de capteur | Laser |
Type de scanner | 1D/2D |
Poids et dimensions | |
Hauteur | 74 mm |
Largeur | 212 mm |
Poids | 380 g |
Profondeur | 110 mm |
Puissance | |
Capacité de la batterie | 3350 mAh |
Consommation électrique | 500 mA |
Consommation électrique typique | 8 W |
Durée de vie de la batterie | 4,5 h |
Nombre de lectures par batterie | 60000 |
Technologie batterie | Lithium-Ion (Li-Ion) |
Tension d'entrée | 10 V |
Type de batterie | Batterie intégré |
Type de source d'alimentation | Batterie, CC |
représentation / réalisation | |
Alarme sonore | Oui |
Certification | R.E.A.C.H. |
Code (IP) Internationale Protection | IP65 |
Couleur du produit | Noir, Jaune |
Fonctions de protection | Résistant aux chocs |
Matériau du boîtier/corps | Plastique |
Nombre de clés | 4 touche(s) |
