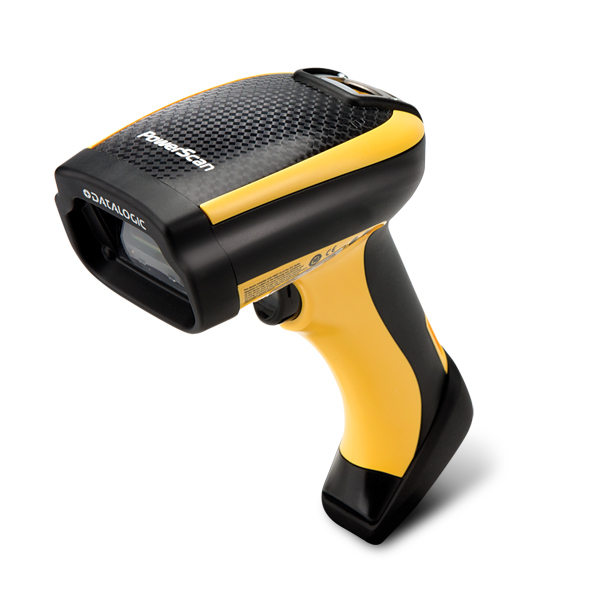

PowerScan PBT9501 Bluetooth Fixed Direct

PBT9501-DPMRB - PowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune

Ref : PBT9501-DPMRB
1.185,85 €
HTVA
SKU
PBT9501-DPMRB
Marque
Catégorie
Lecteurs de code barres

PowerScan PBT9501 Bluetooth Fixed Direct Part Marking EVO Removable Battery

PowerScan 9501 Lecteur de code barre portable 1D/2D Laser Noir, Jaune
PBT9501-DPMRB
The PowerScan DPM series include the latest optics and software from Datalogic to make the reading of codes with DPM easy and intuitive. The typical reading distance is from contact to 4-5 cm / 1.5 -1.9 in, depending on the DPM technology used, the code resolution, and the material and surface type. The scanner is also capable of reading standard bar codes on printed labels.
The PowerScan PD9531-DPM imager is the corded version of the new series.  The 9501-DPM cordless area imagers are comprised of the PBT9501-DPM / PM9501-DPM imagers. The PBT model features Bluetooth wireless technology and the PM model features Datalogic’s STAR Cordless System narrow band radio.

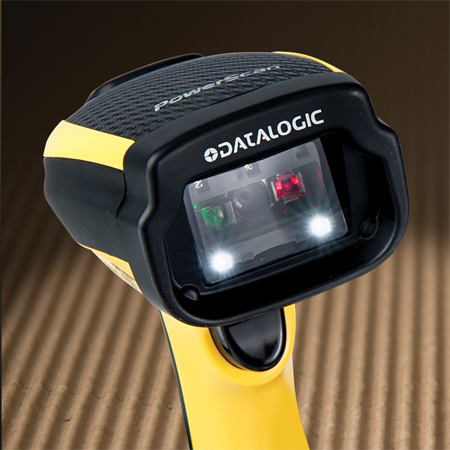

The intuitive aiming system provides the highest first-pass reading rates. A soft-pulsed white illumination light results in reduced flashes and is very gentle to the eyes.
The PM9501-DPM Evo series offers the display option with 4 configurable keys. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
Datalogic’s Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode.
Numérisation
TypeLecteur de code barre portable
Type de scanner1D/2D
Type de capteurLaser
Linéaires (1D) codes barres acceptésGS1 DataBar
Matrix (2D) codes barres acceptésAztec Code, Lecture code datamatrix, Han Xin, MaxiCode, Micro QR Code, QR Code
Distance de lecture9 cm
Niveaux de luminosité (rayon direct du soleil)0 - 100000 lux
Angle de lecture: Inclinaison (Tilt)0 - 360°
Angle de lecture Horizontal (Pitch)-40 - 40°
Angle de lecture Vertical (Yaw)-40 - 40°
Connectivité
Technologie de connectivitéAvec fil &sans fil
Interfaces standardsBluetooth, USB
Version USB2.0
Modèle du Bluetooth3.0
Fréquence de fonctionnement2400 - 2480 MHz
représentation / réalisation
Couleur du produitNoir, Jaune
Matériau du boîtier/corpsPlastique
Code (IP) Internationale ProtectionIP65
Fonctions de protectionRésistant aux chocs
Nombre de clés4 touche(s)
Alarme sonoreOui
CertificationR.E.A.C.H.
Puissance
Type de source d'alimentationBatterie, CC
Consommation électrique typique8 W
Technologie batterieLithium-Ion (Li-Ion)
Type de batterieBatterie intégré
Capacité de la batterie3350 mAh
Nombre de lectures par batterie60000
Durée de vie de la batterie4,5 h
Tension d'entrée10 V
Consommation électrique500 mA
Poids et dimensions
Poids380 g
Largeur212 mm
Profondeur110 mm
Hauteur74 mm
Conditions environnementales
Température d'opération-20 - 50 °C
Température hors fonctionnement-40 - 70 °C
Détails techniques
Certificats de durabilitéRoHS
