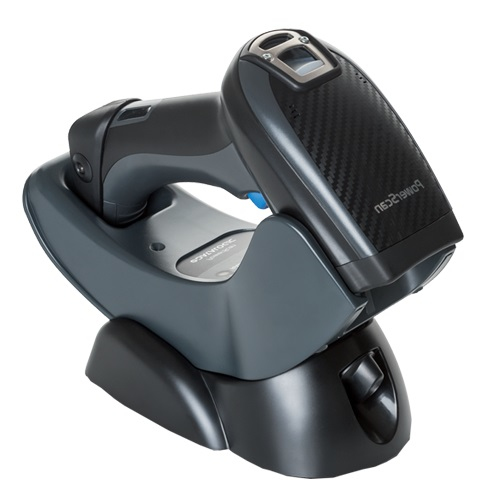

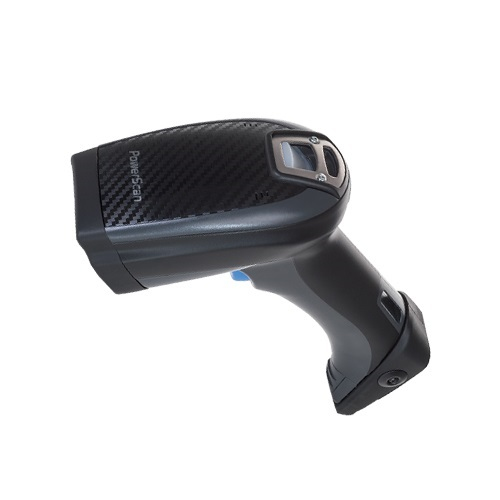

PowerScan Retail PBT9501 Bluetooth RS-23

PBT9501-BK-RTK20 - PowerScan 9501 Retail Lecteur de code barre portable 1D/2D Laser Noir, Gris

Ref : PBT9501-BK-RTK20
1.077,06 €
HTVA
SKU
PBT9501-BK-RTK20
Marque
Catégorie
Lecteurs de code barres

PowerScan Retail PBT9501 Bluetooth RS-232 Kit Black Rem Batt

PowerScan 9501 Retail Lecteur de code barre portable 1D/2D Laser Noir, Gris
PBT9501-BK-RTK20
The series includes the Desk corded version (PD9531-RT), the cordless Bluetooth wireless technology version (PBT9501-RT) and the cordless mobile version with Datalogic’s STAR Cordless System (PM9501-RT).
The rugged mechanics of the PowerScan Retail series guarantees reliable long-term operation in retail activities. Repeated shocks at the POS checkout or outdoor usage do not inhibit the scanner’s performance or reliability, protecting the retailer’s investment. The IP65 rating further guarantees protection from damages caused by exposure to moisture.
The PowerScan Retail series provides snappy reading performance on all common 1D and 2D codes, as well as excellent performance when reading bar codes from mobile devices.
The PowerScan PBT9501-RT Retail series can transmit data to the host through its base station as well as to any commercial or embedded Bluetooth v2.0 compliant device. The PowerScan PM9501-RT Retail series is offered with or without a display and the 16-key keyboard. Wide radio coverage and the full keypad allow these mobile imagers to be used at the POS checkout as well as for inventory or shelf replenishment activities.
The PowerScan Retail 9501 series is the first hand held series of scanners on the market capable of reading digital watermarks including Digimarc Barcodes.  This new application significantly reduces time at the checkout. Additionally, product packaging that carries Digimarc Barcodes can connect mobile-enabled shoppers with additional product information, special offers, recommendations, reviews, social networks and more.
Numérisation
TypeLecteur de code barre portable
Type de scanner1D/2D
Type de capteurLaser
Linéaires (1D) codes barres acceptésEAN-13, GS1 DataBar, JAN, Planet, POSTNET, RM4SCC / KIX, UPC-A, UPC-E
Résolution du capteur optique (l x H)864 x 544 pixels
Niveaux de luminosité (rayon direct du soleil)0 - 100000 lux
Angle de lecture: Inclinaison (Tilt)0 - 360°
Angle de lecture Horizontal (Pitch)-40 - 40°
Angle de lecture Vertical (Yaw)-40 - 40°
Connectivité
Technologie de connectivitéAvec fil &sans fil
Interfaces standardsBluetooth, RS-232, USB
Portée du routeur sans fil100 m
Modèle du Bluetooth3.0
Fréquence de fonctionnement2400 - 2480 MHz
représentation / réalisation
Couleur du produitNoir, Gris
Matériau du boîtier/corpsPlastique
Code (IP) Internationale ProtectionIP65
Fonctions de protectionRésistant aux chocs
Alarme sonoreOui
Écran integréNon
CertificationR.E.A.C.H.
Puissance
Type de source d'alimentationBatterie, CC
Technologie batterieLithium-Ion (Li-Ion)
Capacité de la batterie3350 mAh
Nombre de lectures par batterie60000
Temps de charge4,5 h
Tension d'entrée10 V
Consommation électrique500 mA
Poids et dimensions
Poids400 g
Largeur110 mm
Profondeur74 mm
Hauteur212 mm
Informations sur l'emballage
Adaptateur d'alimentation externeOui
Câbles inclusSecteur, RS-232
Base de rechargeOui
Conditions environnementales
Température d'opération-20 - 50 °C
Température hors fonctionnement-40 - 70 °C
Taux d'humidité de fonctionnement0 - 95%
Détails techniques
Certificats de durabilitéRoHS
