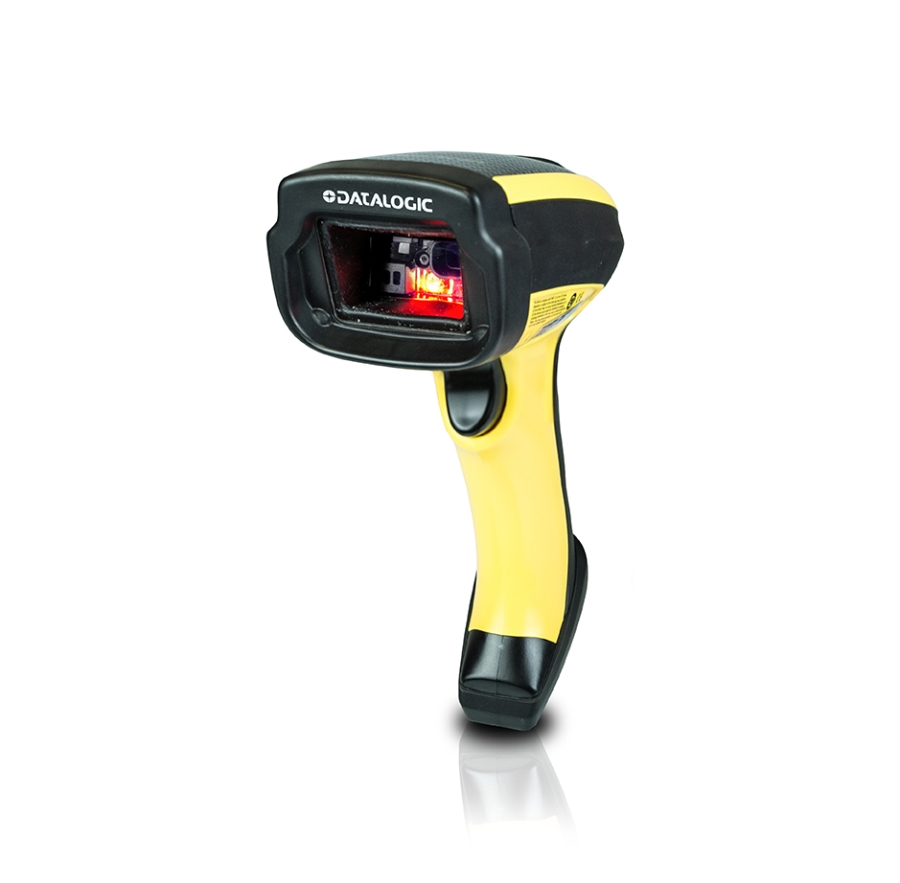

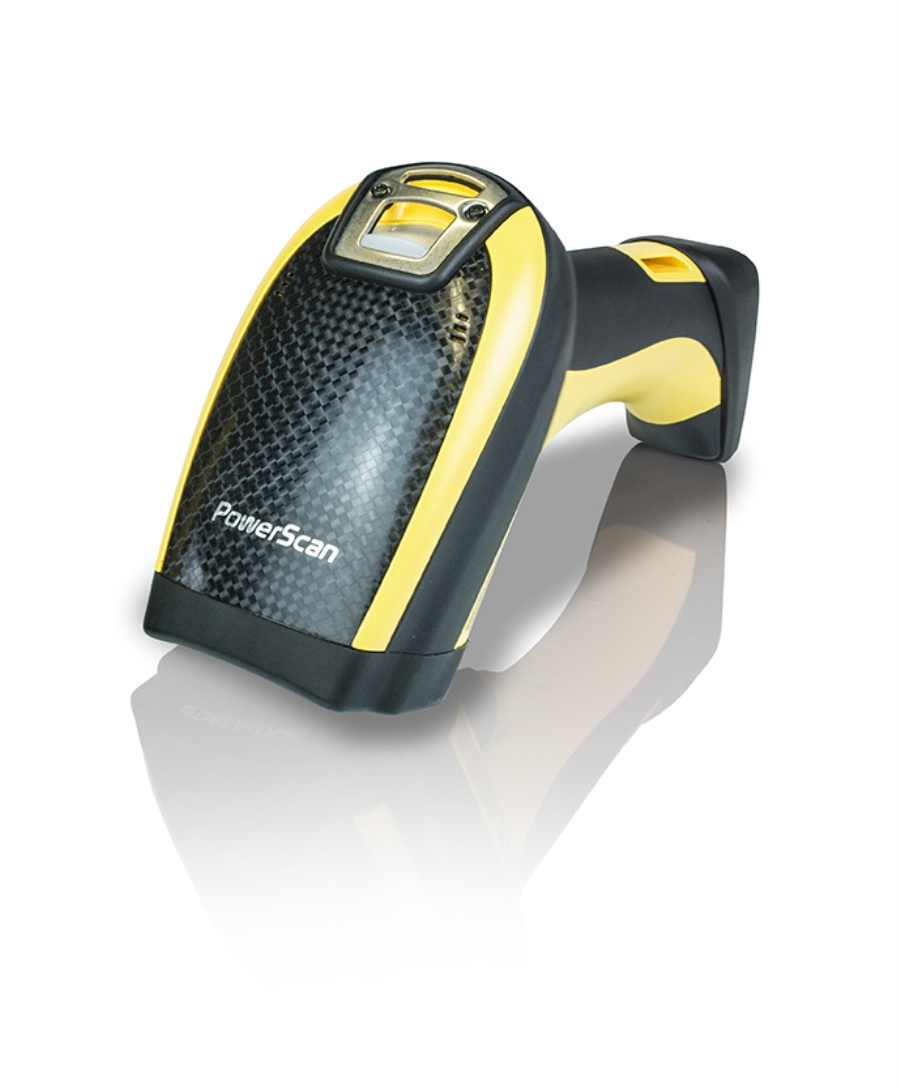

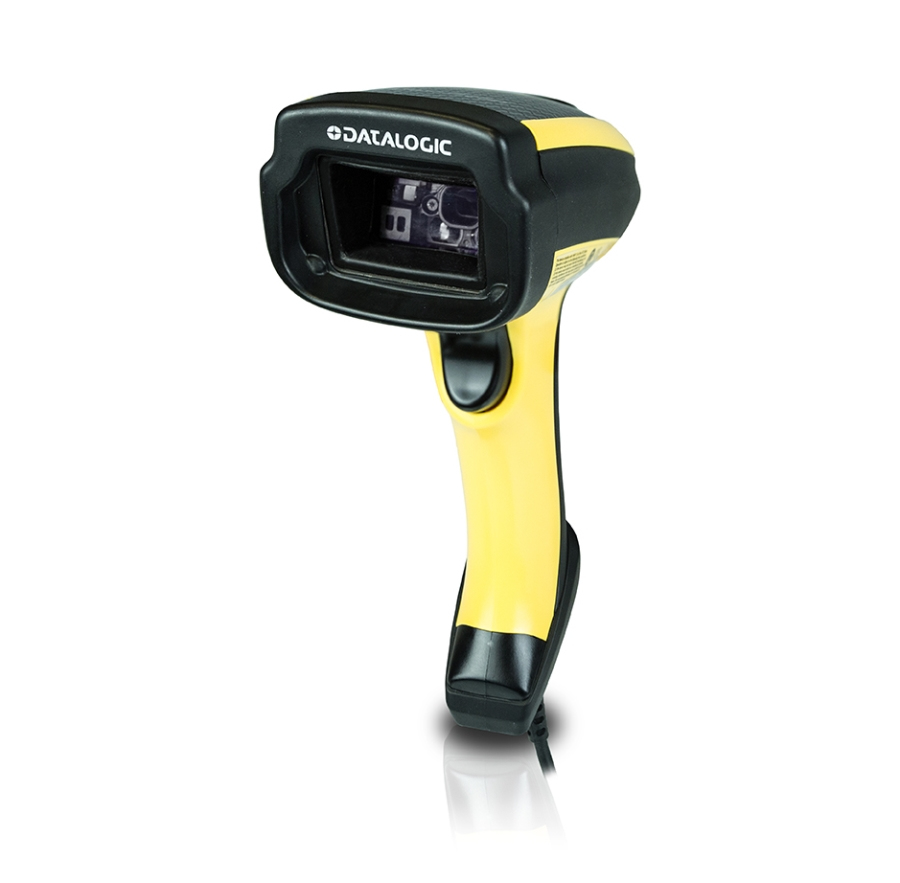

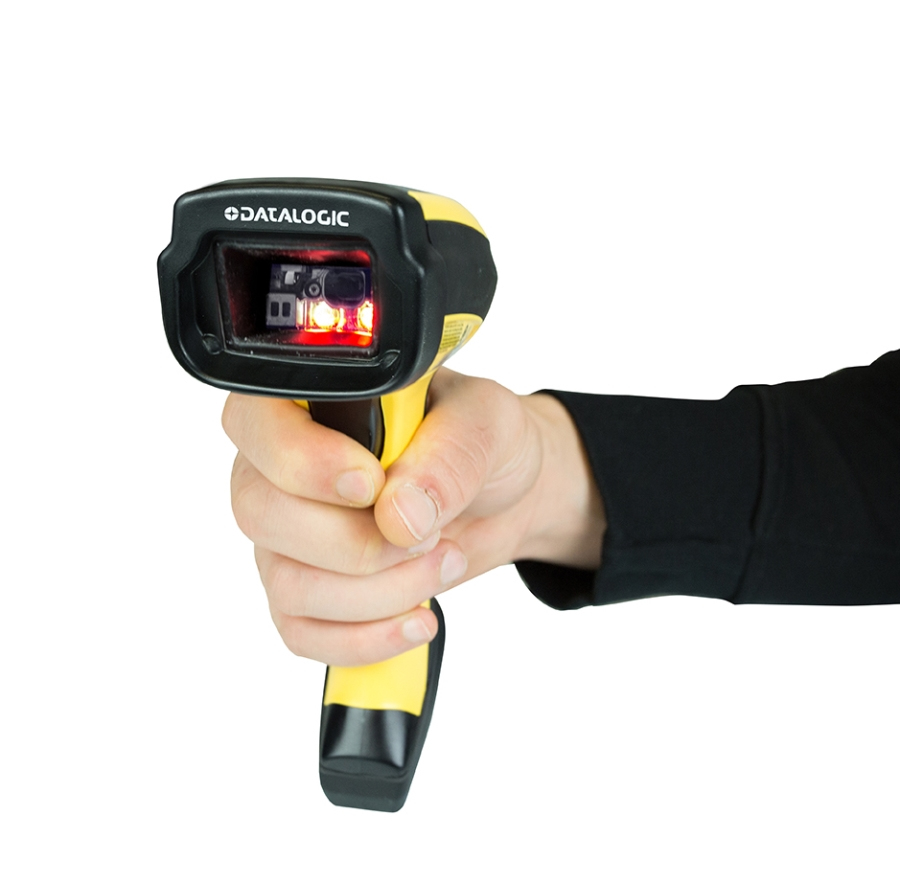

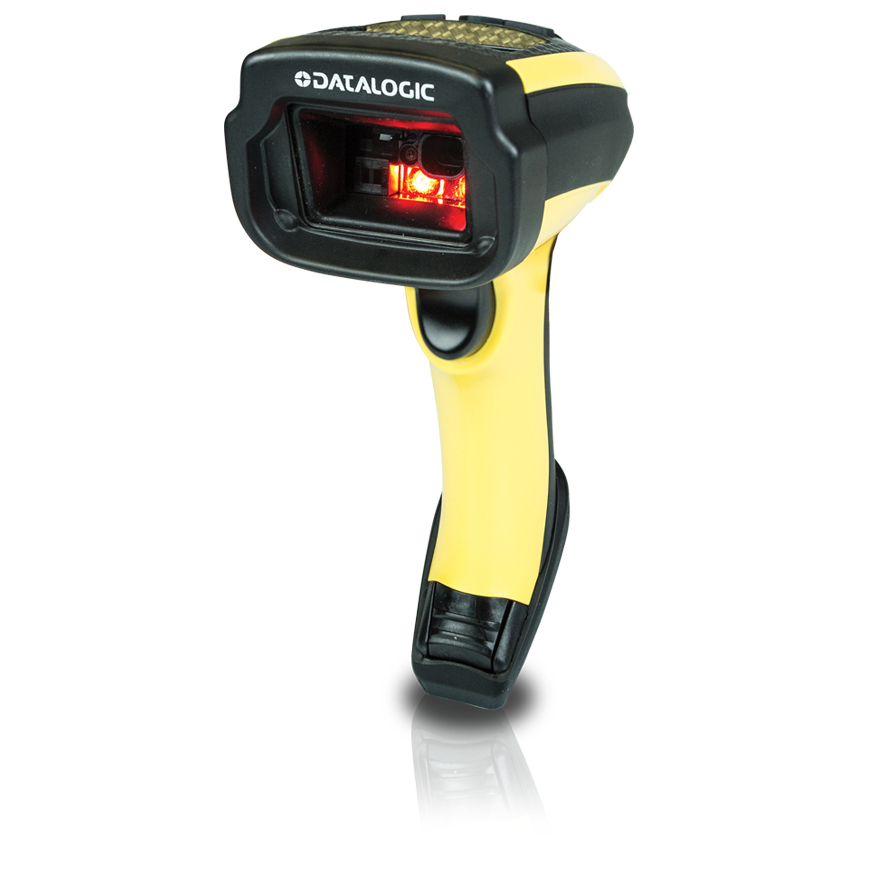

PBT9501-ARRB - PowerScan 95X1 Auto Range Lecteur de code barre portable 1D/2D LED Noir, Jaune
Ref : PBT9501-ARRB1.017,26 €
HTVAPowerScan 95X1 Auto Range Lecteur de code barre portable 1D/2D LED Noir, Jaune
PBT9501-ARRBDatalogic is introducing the new PowerScan 95X1 Auto Range (AR) Series, the top performing industrial hand held scanner with extra-long range scanning capabilities on 1D/2D barcodes. This addition further expands the PowerScan 9000 family offering by including the Auto Range 2D imaging models.
The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances.
The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic’s STAR Cordless System 2.0 proprietary radio (PM9501-AR) or Bluetooth 3.1 wireless technology (PBT9501-AR).
The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user’s environment.
The PowerScan 9500 AR imager has a powerful autofocus system that allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft with a fast focus adjustment, allowing the operator to easily move from a closeup barcode to a barcode at the top of a warehouse rack. A powerful LED lighting system projects a regular pattern with sharp edges that can be used as a field of view indicator in the closeup field, while a laser aimer enables the visibility of the scanner aimer at long distances.
The PowerScan 95X1 AR imagers are available in a Desk model (PD9531-AR), and cordless models featuring Datalogic’s STAR Cordless System 2.0 proprietary radio (PM9501-AR) or Bluetooth 3.1 wireless technology (PBT9501-AR).
The PowerScan 95X1 AR imagers will share the same accessories as other PowerScan 9XXX series products, allowing a combination of devices and base stations according to the different needs of the user’s environment.
Numérisation | |
Type | Lecteur de code barre portable |
Type de scanner | 1D/2D |
Type de capteur | LED |
Linéaires (1D) codes barres acceptés | EAN-13, GS1 DataBar, JAN, Planet, POSTNET, RM4SCC / KIX, UPC-A, UPC-E |
Distance de lecture | 20 m |
Angle de lecture: Inclinaison (Tilt) | -180 - 180° |
Angle de lecture Horizontal (Pitch) | -80 - 80° |
Angle de lecture Vertical (Yaw) | -60 - 60° |
Connectivité | |
Technologie de connectivité | Avec fil &sans fil |
Interfaces standards | Bluetooth, RS-232, USB |
Modèle du Bluetooth | 3.1 |
représentation / réalisation | |
Couleur du produit | Noir, Jaune |
Matériau du boîtier/corps | Plastique |
Code (IP) Internationale Protection | IP65 |
Fonctions de protection | Résistant aux chocs |
Voyants | Oui |
Alarme sonore | Oui |
Écran integré | Non |
Puissance | |
Type de source d'alimentation | Batterie, CC |
Consommation électrique typique | 8 W |
Technologie batterie | Lithium-Ion (Li-Ion) |
Capacité de la batterie | 3350 mAh |
Nombre de lectures par batterie | 40000 |
Temps de charge | 4,5 h |
Tension d'entrée | 10 V |
Consommation électrique | 500 mA |
Poids et dimensions | |
Poids | 460 g |
Largeur | 110 mm |
Profondeur | 74 mm |
Hauteur | 212 mm |
Conditions environnementales | |
Température d'opération | -20 - 50 °C |
Température hors fonctionnement | -40 - 70 °C |
Taux d'humidité de fonctionnement | 0 - 95% |
Détails techniques | |
Certificats de durabilité | RoHS |
