7ZT7A00482 - AUZX Interne Ethernet 1000 Mbit/s
Ref : 7ZT7A00482191,18 €
HTVA

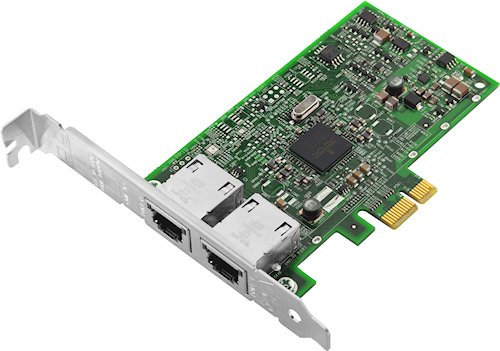

Lenovo ThinkSystem NetXtreme By Broadcom - Adaptateur réseau - PCIe 2.0 x4 profil bas - Gigabit Ethernet x 2 - pour ThinkAgile VX3575-G Integrated System
Points Clés
- Full line-rate performance across all ports
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3x flow control support
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- Jumbo Frames support (9600 bytes frames)
- Low-profile form factor - supported by the majority of System x and iDataPlex servers
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- PCI Express 2.0 host interface (39Y6066 is PCI Express 1.1)
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
Points Clés
- Full line-rate performance across all ports
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3x flow control support
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- Jumbo Frames support (9600 bytes frames)
- Low-profile form factor - supported by the majority of System x and iDataPlex servers
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- PCI Express 2.0 host interface (39Y6066 is PCI Express 1.1)
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
- I/O virtualization (IOV) support for VMWare NetQueue and Microsoft VMQ - improves network performance in virtualized environments
- IEEE 1588 Precision Time Control and 802.1AS time synchronization support - Provides greater accuracy of data packet delivery within the network (NetXtreme I only)
- IEEE 802.1q VLAN support - provides enhanced network management and efficiency
- IEEE 802.3az Energy Efficient Ethernet (EEE) compliant - Reduces adapter power consumption by up to 42% through intelligent adaptive power management, adjusting power based on data traffic load. (NetXtreme I only)
- IEEE 802.3x flow control support
- IEEE 802.3z (Clause 30) - Statistics for SNMP MIB II, Ethernet like MIB, and Ethernet MIB (NetXtreme I only)
- Jumbo Frames support (9600 bytes frames)
- Low-profile form factor - supported by the majority of System x and iDataPlex servers
- Management using Broadcom Advanced Control Suite (BACS), Windows Management Instrumentation (WMI), and Broadcom Management API (BMAPI)
- Message Signaled Interrupts (MSI) and MSI-X support - Maximizes server processing performance by reducing CPU overhead and lowering interrupt latency
- On-chip temperature monitor (NetXteme I only)
- One, two, or four 10/100/1000 copper ports with RJ45 for Cat 5e/6 cabling
- PCI Express 2.0 host interface (39Y6066 is PCI Express 1.1)
- Receive and transmit side scaling
- TCP, IP, and UDP checksum offload
AUZX Interne Ethernet 1000 Mbit/s
7ZT7A00482Lenovo AUZX. Interne. Technologie de connectivité: Avec fil, Interface de l'hôte: PCI Express, Interface: Ethernet. Débit de transfert des données maximum: 1000 Mbit/s. Couleur du produit: Vert
| Connectivité | |
| Technologie de connectivité | Avec fil |
| Interface de l'hôte | PCI Express |
| Interface | Ethernet |
| Nombre de port ethernet LAN (RJ-45) | 2 |
| PCI version | 2.0 |
| Réseau | |
| Débit de transfert des données maximum | 1000 Mbit/s |
| Standards réseau | IEEE 802.1Q,IEEE 802.3az |
| Ethernet/LAN | Oui |
| Type d'interface Ethernet | Gigabit Ethernet |
| LAN Ethernet : taux de transfert des données | 10,100,1000 Mbit/s |
| Technologie de cablâge | 10/100/1000BaseT(X) |
| Support de trames étendues (Jumbo Frames) | Oui |
| Support iSCSI | Oui |
| Contrôleur de réseau local (LAN) | Broadcom BCM5720 |
| Design | |
| Interne | Oui |
| Couleur du produit | Vert |
| Facteur de forme de la carte PCI | Hauteur totale (profil bas) |
| Voyants | Oui |
| Détails techniques | |
| Certificats de durabilité | RoHS |
| Poids et dimensions | |
| Largeur | 109 mm |
| Profondeur | 19 mm |
| Hauteur | 69 mm |
| Informations sur l'emballage | |
| Quantité | 1 |
| Autres caractéristiques | |
| Assistance contrôle des flux | Oui |
| Trames géantes | 9600 |
